Product Description:

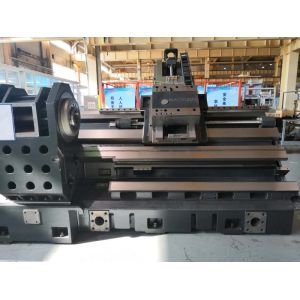

Slant Bed CNC Lathe T5.2-500Q

T5 series horizontal CNC lathe, combining intelligent control technology and advanced manufacturing technology, has high precision, high efficiency and high cutting rigidity. The finite element analysis software is used to optimize the design, analyze the distribution of stress points, reduce the deformation of parts, and achieve the optimal structure of the whole machine. The main castings are all made of high-strength cast iron materials, which ensures the minimization of vibration during the cutting process and improves the machining accuracy and cutting stability.

Product Features:

1,High Precision

♦ C3 pre-drawn lead screw

♦ Error compensation technology

♦ Process standard quantification

2, High Efficiency

♦ Two axes high and fast moving speed

♦ Split servo tail

♦ High efficiency servo cutter tower

3,High Rigidity

♦ High-quality cast iron bed and other key castings

♦ Large span double row cylindrical roller spindle bearing

♦Anti-bending saddle structure

Product Details:

1. i5 intelligent system is based on advanced motion control technology and network technology, with industrialization, information, networking, integration, intelligent efficient integration, intelligent operation, intelligent programming, intelligent maintenance and intelligent management.

2. High quality cast iron, U-shaped bar structure, with strong rigidity; 45 degrees overall slant bed, the front side long chip discharge mouth, chip discharge effect is good.

3. The headstock adopts scraping square shavings, increasing the positioning base surface laterally, with excellent rigidity; The structure of the headstock is optimized, and the identification and balancing unit can provide the spindle wind module; High rigidity motorized spindle, fast start and stop, low power consumption, high efficiency and energy saving.

4. Intelligent control of tailstand to improve machining accuracy; The upper and lower split tail platform is used to adjust the accuracy easily. For heavy load machining needs, optional small spindle module and damping module, better anti-vibration performance.

5. Servo transposition, efficient processing, optimization of tool structure, overall performance improvement; Power tool can be configured to realize integrated machining of lathe, milling and drilling.

6. Linear guide rails are adopted for X/Z axis to optimize the layout of guide rails to achieve high rigidity and good dynamic performance; X axis adopts predrawing lead screw and labyrinth sealing structure to reduce the influence of temperature on accuracy and achieve high precision and stable processing.

Product Paramenters:

Item		Unit	Specifications
Max. turning diameter		mm	360
Max. turning length		mm	500
Max.swing diameter over bed		mm	Φ560
Max.swing diameter over cross slide		mm	Φ350
Spindle	Type of spindle nose		A2-6
	Inner diameter of front bearing	mm	Φ100
	Taper of spindle bore		1:20；Φ70
	Spindle bore	mm	Φ65
	Max. through bar diameter	mm	Φ50
	Standard chuck diameter	inch	8
	Max. spindle speed	r/min	4500
	Spindle rated torque	Nm	130(730r/min)
	Max. spindle torque	Nm	178(730r/min)
	Main motor output power continuous /30 minutes	kW	11/15
Two axis	Rapid traverse of X/Z axis	m/min	30
	X axis travel	mm	200
	Z axis travel	mm	560
Tailstock	Tailstock travel	mm	500(Servo drive)
	Tailstock quill taper	Morse	MT-5
Turret	Turret form		Horizontal 8 positions servo turret
	Center height of turret	mm	80
	Turret rotation repeat positioning accuracy	Sec.	±1.6
	Whether the cutter can be selected nearby		yes
	End face tool holder	mm	25×25
	Boring tool holder	mm	Φ40
	Reduction sleeve	mm	f32
Other	Distance from spindle center to bed bottom	mm	1015
	Machine net weight	kg	4200
	Total power supply capacity	kVA	35
	Overall dimensions (Length X width X height)	mm	2750×1890×1900

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
